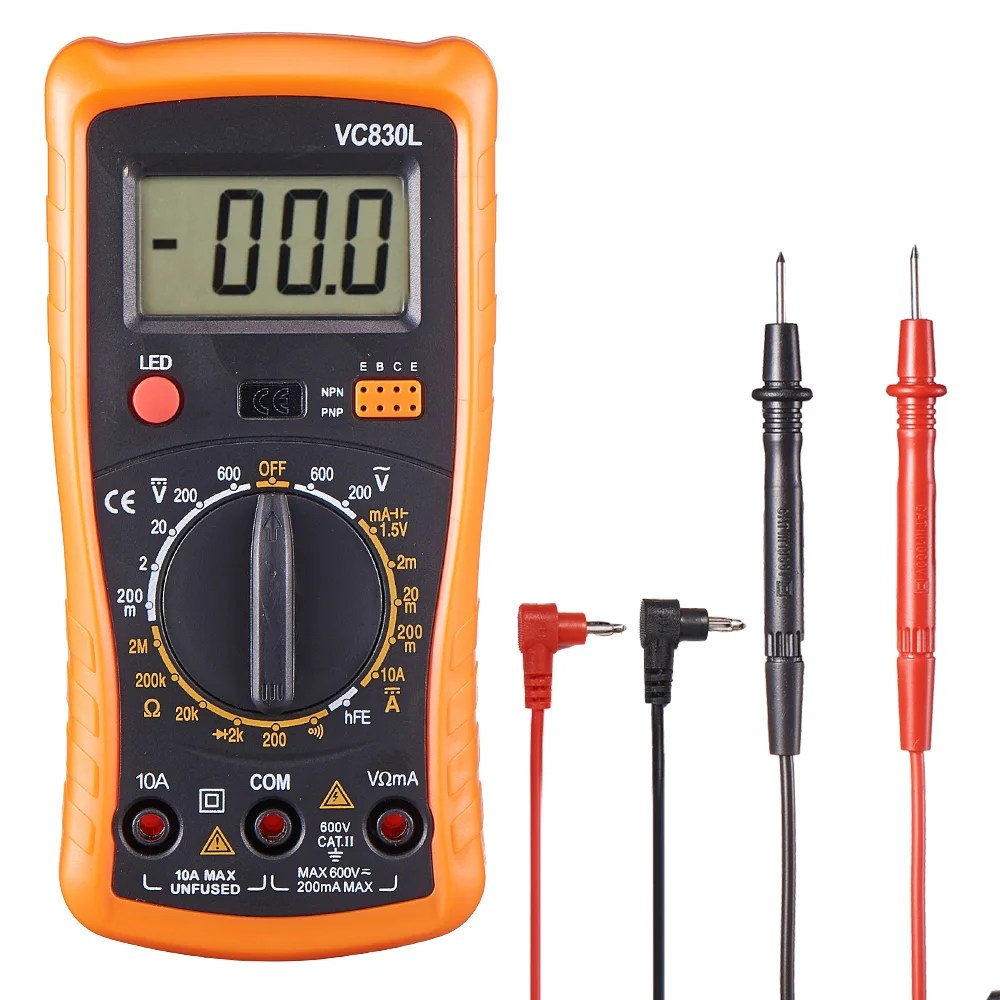

Description

1-1. Displaying: 22mm digit height LCD display.

1-2. Max. Indication: 1999 (31/2) auto polarity indication.

1-3. Sampling rate: approx. 3 times/ sec

1-4. Over Range Indication: MSD displays “1”

1-5. Low Battery Indication: ”  ” symbol displays.

1-6. Operation Environment: (0～40)℃, relative humidity ＜80% .

1-7. Power: 9V battery (NEDA1604/6F22 or equivalent)

1-8. Measurement: 145×85×30mm (Length×Width×Height)

1-9. Weight: Approx. 170g (including a 9V battery)

1-10. Accessories: Operation Manual, Product Certificate, Packing box, Test leads and a 9V battery.

2. Technical Features

Accuracy: ± (a%×reading+d)

Surrounding: (23±5)℃, relative humidity＜75%. One year warranty since the date of manufacture.

• DCV

Input impedance: 1MΩfor all ranges.

• ACV

Input impedance: 1MΩ.

Frequency Response: (40～200)Hz

• DCA

Max. Input current: 10A (no more than 6 seconds)

Overload Protection: 0.2A/250V; 10A/250V fuse.

• Resistance
